用于商業空間的揚聲器系統不僅需要提供卓越音質，還必須能夠與建筑及其內飾輕松融合，VXL 系列線陣揚聲器系統能夠高度滿足這些要求。
Speaker systems for commercial spaces must not only deliver high sonic quality, but they must also blend effortlessly with the architecture and interior décor. VXL series line array speaker systems satisfy both of these requirements to a high degree.
VXL 系列的超薄機身僅 54mm 寬，不僅能與任何內飾完美融合，音效水平也非常之高。全頻范圍的低頻響應對于原音再現至關重要。
Slim cabinets that are only 54 millimeters wide blend beautifully with any interior while providing top-quality sound for speech, as well as full-range frequency response with extended lows that is so vital to satisfying music reproduction.
附有釹磁鐵的高性能驅動器垂直排列，用于創建出色線源。這樣的配置適用于企業會議室、演講廳、購物中心以及其他需要在有限空間內發表清晰聲音的任意場合。
High-performance drivers with neodymium magnets are arranged vertically to create a line source that achieves outstanding projection. This configuration is particularly advantageous in corporate conference rooms, lecture halls, shopping malls, and other applications where clear speech must be delivered in a limited space.

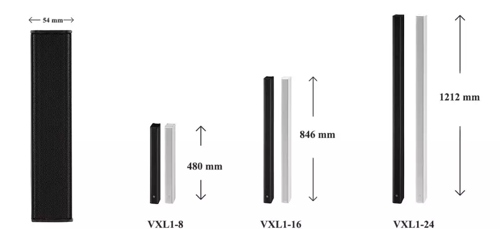

VXL 系列包含六種不同尺寸、顏色的型號，擁有廣泛的適用范圍。并且，一系列可選硬件使它的安裝變得靈活。
The VXL series lineup includes six models of varying size and color, accommodating a wide range of applications. A range of optional hardware is available for flexible installation.
來自纖細機身的杰出聲音
Outstanding Sound from Slim Cabinets
VXL 中使用的 1.5 英寸全頻驅動器經過精心設計，整個系列均采用了釹磁鐵與優質材料來調諧，這使得僅 54mm 寬的機身擁有出色的全頻響應。從平滑的高點到華麗的低點，VXL 精準的原聲再現使其成為演講和音樂的理想選擇。
The 1.5” full-range drivers used in the VXL series have been painstakingly designed and tuned with neodymium magnets and top-quality materials throughout, resulting in excellent full-range response from cabinets that are only 54 millimeters wide. Accurate reproduction from smooth highs to opulent lows makes them ideal for speech as well as music.
適用于多種應用場合
Adaptable to a Diverse Range of Applications

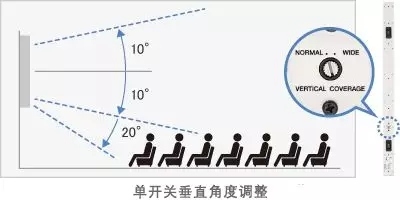

后面板開關可以將投射角度設置為 20°（向上 10° 和 向下 10°）或 40°（向上 10° 和向下 30°）。* 可根據需要，對聲壓級和覆蓋范圍進行進一步的調整。將不同數量驅動單元的型號相結合，可增加更多的應用可能，IP35 防水防塵等級使得 VXL 系列產品同樣適合于戶外。
A rear-panel switch allows vertical dispersion to be set to 20° (10° up and 10° down) or 40° (10° up and 30° down).* Sound pressure level and coverage can be further adjusted as required by combining models with different numbers of driver units, expanding the range of potential applications. An IP35 water and dust resistance rating makes the VXL series suitable for outdoor use too.
* VXL1-8 投射角度固定在 40°（向上 10° 和向下 30°）。
* VXL1-8 vertical dispersion is fixed at 40° (10° up and 30° down).
靈活的安裝選項
Flexible Installation Options
除了附帶的壁掛支架，VXL 系列還擁有一整套可選硬件，以便于在任何環境中都能進行系統地安裝和設置。WMB-L1B 和 WMB-L1W 壁掛支架具有垂直和水平兩種角度可供調節功能，VCB-L1 支架使垂直揚聲器得以耦合，HCB-L1 則讓水平揚聲器能夠耦合， VCSB-L1B 和 VCSB-L1W 支架允許垂直揚聲器耦合，并具有向下調節角度的功能。ST-L1B 和 ST-L1W 揚聲器變壓器可用于高阻抗系統。
In addition to the supplied wall-mount brackets, a comprehensive range of optional hardware is available for convenient system mounting and setup in just about any environment. The WMB-L1B and WMB-L1W wall mount brackets feature vertical and horizontal angle adjustment capability, the VCB-L1 bracket allows vertical speaker coupling, the HCB-L1 bracket allows horizontal speaker coupling, and the VCSB-L1B and VCSB-L1W brackets allow vertical speaker coupling with downward angle adjustment capability. ST-L1B and ST-L1W speaker transformers are available for high-impedance systems.
|
